PREMIUM POWER SUPPLIES
Prax-Power designs and manufactures custom inductive components for power electronics, specifically focusing on custom magnetics for industrial and automotive applications. They offer design support, prototyping, and manufacturing services for these components, emphasizing optimization and quick turnaround times
With a special focus on design support to our customers’ engineering teams, prototypes and specifications are released within a short time frame. Our long experience in design and industrialization of inductive components allows PRAX to offer services based on component specifications, cost analysis, materials selection and pre-industrialization analysis.
Common noise filtering chokes. For a discrete component EMC filtering approach, Prax offers a wide range of CMCs in any format and with world-class materials (soft ferrite, nanocrystaline).

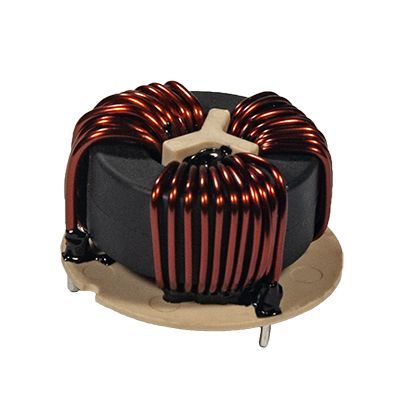

Choke Toroid L=2×1,6mH 16A
Toroid choke with central FR4 separator to ensure separation between windings and with customized base to for specific pinout requirement.

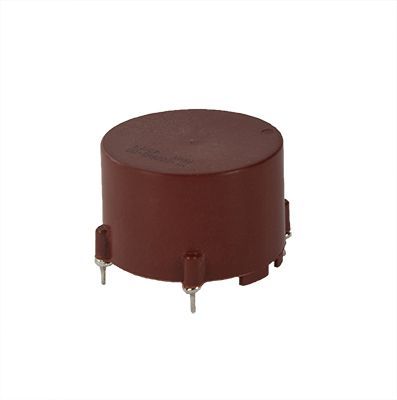

Common mode choke with custom plastic box which is filled with potting material to achieve electrical insulation requirements.
CM Choke 160uH 22A
Common mode choke with customized base that allows tightening from lower side and also small quantity of potting to increase isolation and heat transfer.
Common Mode Choke 2 x 28,6mH
Common Mode Choke 3 x 3,6mH 16/32A
3-phase common mode choke with asymmetrical central separation to ensure the minimum distance between windings. Two of the winding are done with 1,6mm wire and the remaining with 2,24mm wire for different current flow.
